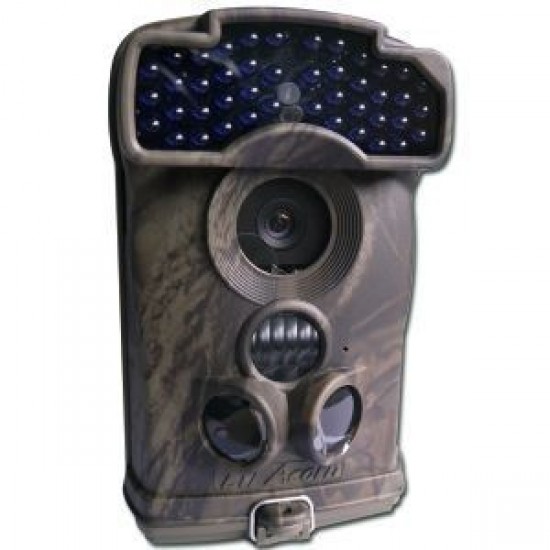

FOTOKAPAN SCOUTİNG CAMERA SG-631WM (LTL ACORN 6310WM)

Model

Parameters

Ltl-6310MC

Image Sensor

5 Mega Pixels Color CMOS

Yes

MaxPixel Size

2560x1920

Yes

Lens

F=3.1; FOV=52°; Auto IR-Cut

Yes

IR Flash

850nm

35meters/115 feet

940nm (Black Flash)

18meters/59feet

LCD Screen

40.8x30.6mm(2.0");960(RGB)*240DOT;16.7M Color

Yes

Operation Keypad

6 Keys

Yes

Memory

SD Card (8MB ~ 32GB)

Yes

Picture Size

5MP/12MP/2MP = 2560X1920/4000X3000/1600X1200;

Yes

Video Size

1440x1080: 15 fps; 1280x720: 30fps; 640x480: 30fps;

Yes

PIR Sensitivity

High/Normal/Low/Off

Yes

PIR Sensing Distance

65ft/20m (Below 77°F/25°C at the Normal Level)

Yes

Prep PIR

Sensing Angle

Left and right light beams form an angle

of 100°; Each lens covers 10°

Yes

Main PIR Sensing Angle

35°

Yes

Operation Mode

Day/Night

Yes

Trigger Time

0.8 Seconds

Yes

Trigger Interval

0sec. - 60min; Programmable

Yes

Shooting Numbers

1~3

Yes

Video Length

1-60sec.; Programmable

Yes

Camera + Video

First take Picture then Video

Yes

Playback Zoom In

1~16 Times

Yes

Time Stamp

On/Off; Include serial No., temperature and moon phase

Yes

Timer

On/Off; Programmable

Yes

Timer2

On/Off; Programmable

Yes

Password

4-Digit Numbers

Yes

Device Serial No.

4 digits and 26 alphabets set by yourself

Yes

Time Lapse

On/Off; 1 Second ~ 24 Hours Programmable

Yes

Beep Sound

On/Off;

Yes

SD Cycle

On/Off;

Yes

MMS Options

VGA = 640x480; SMS = Text Msg.; OFF Programmable

Upgradeable

MMS Numbers

“0” = Unlimited; 1 ~ 99/Day

Upgradeable

MMS Phone No.

1 ~ 3 Phone Numbers

Upgradeable

MMS E-mail

1 ~ 3 E-mail addresses

Upgradeable

GPRS E-mail

1~3 E-mail addresses

Upgradeable

Low-Battery SMS Alert

“Low battery ” text alert sent

Upgradeable

language setting

Change Country Can Setting Language

Yes

Power Supply

12xAA;

Yes

External DC Power Supply

Plug Size: 4.0mmx1.7mm ,6 ~ 12V (2 ~ 1A)

Yes

Stand-by Current

0.4mA

Yes

Stand-by Time

4~6 Months(4xAA~12xAA)

Yes

Auto Power Off

Auto power off in 3 minutes if no keypad input

Yes

Power Consumption

150mA (+350mA when IR LED lights up)

Yes

Low Battery Alert

4.2~4.3V

Yes

Interface

TV out (NTSC); USB; SD Card Slot; 6V DC External

Yes

Mounting

Strap; Tripod

Yes

Waterproof

IP54

Yes

Operation Temperature

-22~+158°F/-30 ~+70°C

Yes

Operation Humidity

5% ~ 95%

Yes

Certificate

FCC & CE & ROHS

Yes
